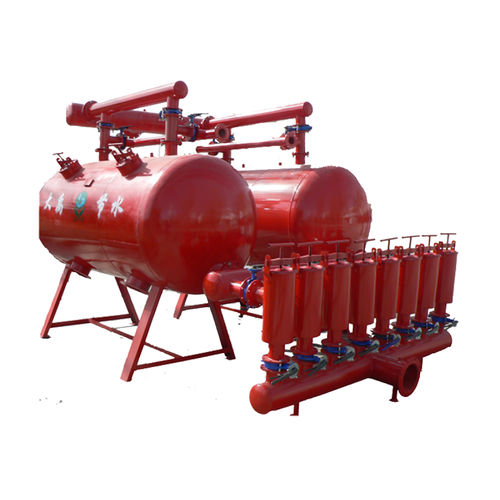

Water filter DY series
cartridgegravelsand

water filter
water filter
water filter
Add to favorites
Compare this product


Characteristics

Designed for
water
Filtration element
cartridge
Filtration method
sand, gravel
Applications
for water treatment, irrigation
Material
steel
Other characteristics
automatic, high-efficiency, large, anti-corrosion
Flow

Max.: 510 m³/h
(18,010.48 ft³/h)

Min.: 35 m³/h
(1,236.013 ft³/h)

Description

High-efficiently gravel-separating. The separating rate of small substances can reach 92%-95% by centrifugal forces. By special coating treatment inside and outside of the filter, the process provides the filter with maximum anti-chemical corrosion and anti-rust protection, prolongs service life and lower maintenance. Gravel filter adopts new types of structure, small volume, the filtering efficiency is high. Fully automatic back flushing and convenient to use. Disc Filter adopts the disc with the shape of V groove, the filtering efficiency is high. Fully automatic back flushing and convenient to use. Use the current capacity of all units with control valves to stabilize the filtration efficiency; The system with three types of filters can keep working when each type or component unit is under maintenance. Suitable range : surface water (channel water, reservoirs and rivers), underground water and recycled water, etc. Operating methods: manual, semi-automatic, fully automatic( using electricity-supply control or solar energy control system)
