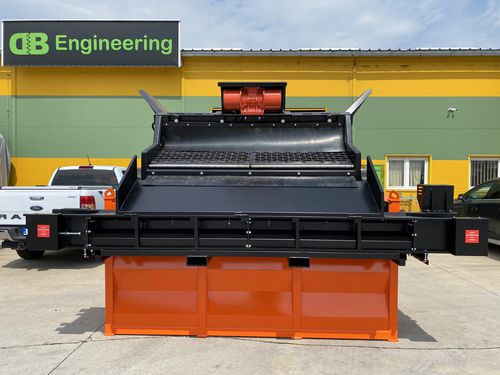

Vibrating screener DB-40LCmobilefor bulk materials2-deck
Add to favorites
Compare this product
Characteristics
- Type
- mobile, vibrating
- Material
- for bulk materials
- Other characteristics
- compact, 2-deck
- Weight
1,900 kg
(4,189 lb)- Screening surface
2.9 m²
(31.2 ft²)- Capacity
Min.: 18 t/h
(11 lb/s)Max.: 60 t/h
(37 lb/s)- Engine power
1.5 kW
(2.04 hp)
Description
Vehicle type: Trailer
MADE AND DESIGNED IN SLOVAKIA.
Handling – tractor, excavator, forklift.
3 fractions, removable 2 sides conveyor for the middle fraction.
Highly efficient operation.
2 deck screener, possibility of delivery with hopper extension, lifting chains and petrol generator. Simple handling and transport, low operating costs, simple exchange of the meshes, LLC conveyor for the middle fraction is removable and goes to both directions, DB40LC screens into 3 fractions.
Transport length - 3 800 mm
Transport width - 2 100 mm
Transport height - 2 620 mm
Mesh length - 1 475 mm
Mesh width - 995 mm
Number of meshes - 4 (2 in each od 2 decks)
Number of fractions - 3
Hopper width - 2 657 mm
Offtake width - 2 690 mmOptional modifications - Yes
The minimum need for a petrol generator - 7 kVA
VIDEO
