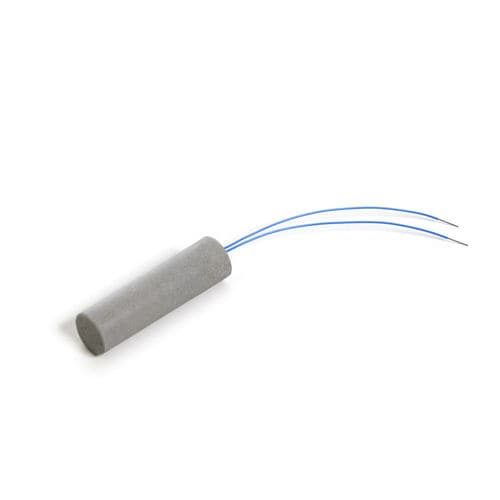

PTC heating element PSS series

siliconecompact

Cartridge Heater PSS | PTC Contact Heater Compact PTC Cartridge Heater with circular silicone housing for precise heating of solids or liquid containers Power up to 80W Multi-voltage capability at 110 - 240V, 12 - 24V High safety and energy efficiency thanks to the PTC effect Worldwide approvals: CE, VDE, UL PTC Cartridge Heater PSS PTC Cartridge Heaters of the PSS series are dynamic heating elements for precise heating of solids and liquid containers. They consist of a contacted PTC heating element in a silicone housing for optimum heat transfer through the expansion of the material. Their compact and circular design allows for easy and space-saving integration into the customer application. PSS Cartridge Heaters with silicone housing are available in different power version up to 80W, suitable for a voltage range of 110-240V or 12-24V. PTC Cartridge Heaters of the PSS series come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements. FEATURES Power up to 80W Multi-voltage capability in the range of 110 - 240V AC/DC, 12 - 24V AC/DC Circular design with silicone housing Optimum heat transfer through pressure application
