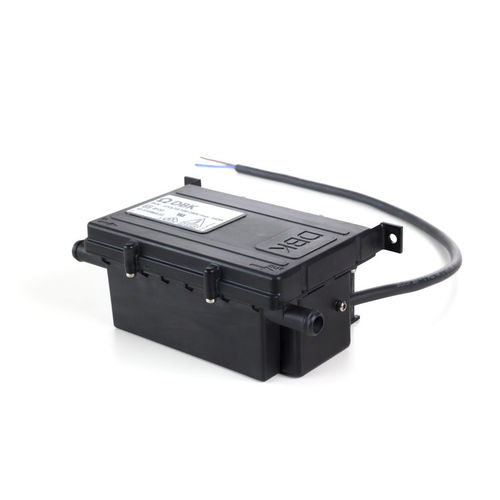

Condensate evaporator DUV series

automatic

PTC Condensate Evaporator Compact PTC Condensate Evaporator with integrated tank for automatic collection and evaporation of condensate in enclosures and electrical cabinets Power 90 - 200W Voltage 110V/230V High safety and energy efficiency thanks to the PTC effect Worldwide approvals: CE, VDE, UL PTC Condensate Evaporator PTC Condensate Evaporators are compact, encapsulated systems with integrated condensate collection tank for automatic collection and evaporation of condensate in enclosures & electrical cabinets. Two hose connectors allow for condensate to flow into the tank, and for steam to exit the housing. The evaporation automatically starts at a certain water level until the tank is empty. PTC Condensate Evaporators are available in three power versions from 90W to 200W, suitable for a voltage of 110V or 230V. PTC Condensate Evaporators come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements. FEATURES Power from 90 to 200W Can be operated at 110V or 230V Evaporation rate up to 245ml/h Compact, encapsulated design Maintenance-free, no draining necessary Enclosed housing with integrated condensate collection tank Easy installation through hose connection, mounting brackets, DIN clip
