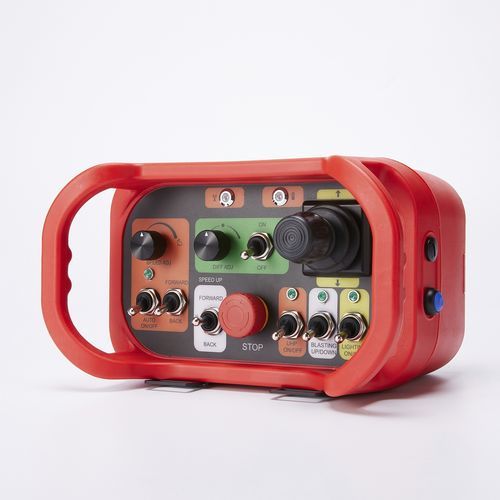

Wireless remote control DCH-S24 serieswith configurable buttonsjoystickwith toggle switch
Add to favorites
Compare this product
Characteristics
- Type
- wireless
- Control interface
- with configurable buttons, joystick, with toggle switch, rotary switch
- Number of buttons
- 3-button
- Features
- with emergency stop
- Protection level
- IP65
- Product applications
- industrial, for crane, for trucks, for vehicles, strap, for mining equipment, for pump, for drilling, for railway applications, for drilling rigs, for excavators, for agricultural machinery, unloader, for locomotives, for excavators, for AGVs
- Battery type
- rechargeable, lithium
- Reach
Max.: 150 m
(492'01" )Min.: 0 m
(0'00" )- Length
230 mm
(9.06 in)- Width
140 mm
(5.51 in)- Weight
Max.: 1,800 g
(63.5 oz)Min.: 1,200 g
(42.3 oz)- Temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)- Frequency
Max.: 434 MHz
Min.: 433 MHz
- Power source
2,500 mA
- Continuous working time
48 h
Description
Transmitter-Shoulder belt S24 series
Standard Features:
Lightweight & Sturdy
Competitively Priced
Easily Operate
Intelligence DCH iKey
Compact&Robust
Customized to Application
Typical applications:
Industrial Cranes
Truck Mounted Crane
Aerial Work Platforms
Crawler Cranes
Tunneling Machinery
Construction Machinery
Tower Crane
Mobile AGV
Concrete Pump Truck
Crawler Crane
Excavator
Drilling Machinery
Agricultural Machinery
Robot
Technical specifications:
Dimensions: 230×140×100mm
Weight: 1200g-1800g
Antenna: internal or external
Start mode: press the start button
E-stop: Mushroom, complying with EN13849-1 standard
Enclosure material ：PA6+30%GF
Protection degree： IP65(Enclosure type 4)
Operating range: 100m(328ft)
Temp. range： -25℃~+70℃ (-13F to +158F)
Humidity range: 0-97% maximum non-condensing
Center frequency range: 433-434mhz;
Response time:100ms
Power (RF Output):10mW(e.r.p)
Baud rate: 9600Kbps
Control options: up to 42 digital outputs+up to 8 analog outputs (dual axis joysticks (4 max.), single axis lever joystick (max.8) or potentiometer(max.8))
Power supply:8.4vdc 2500mah
Operating time: 24 hours
Battery charging time: 3-4 hours
Accessories: neck belt+customer logo option+custom housing colour optional
Apo (automatic shutdown): standard 30 minutes (adjustable)
LED indicator: operation indication / fault status / battery power status
Safety: Active and passive Stop function,Parity & Checksum
Function Configuration:
DCH-S2400 - Total 24 DO options
DCH-S2401 - Total 24 DO and 1 AO options(level joystick, cross joystick or potentiometer, etc.)
DCH-S2403 - Total 24 DO and 3 AO options
DCH-S2405 - Total 24 DO and 5 AO options
DCH-S2407 - Total 24 DO and 7 AO options
