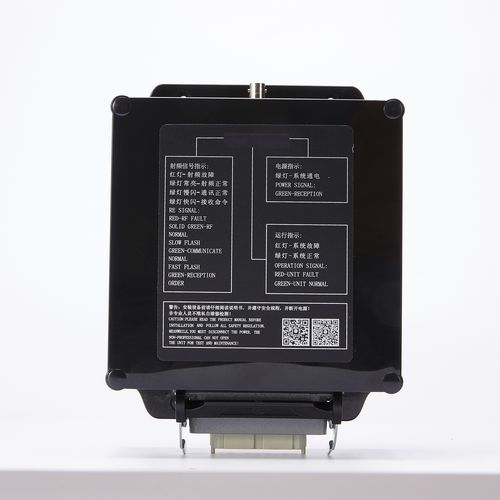

Remote control receiver DCH-BOCANopenIP65
Add to favorites
Compare this product
Characteristics
- Applications
- for remote control
- Interface type
- CANopen
- Other characteristics
- IP65
Description
DCH-BO（CANOPEN BUS)
Size: 160 × 160× 90mm
Weight: 1000-1200g (depending on the accessories, this is the approximate weight)
Antenna: external (standard 3M TNC antenna)
Housing material / protection grade: PA6+30%GF / IP65
Temperature range： -25℃~+70℃ (-13F to +158F)
Humidity range: 0 - 97% maximum non-condensing
Center frequency range: 433-434mhz
Rubber vibration: 4 shock pads
Output protocol: CANopen bus protocol
Standard emergency stop : bus emergency stop signal output + physical emergency stop output
LED indicator: operation status indication / RF signal indication / power supply indication
Output options: connector, cable optional
Safety: Active and passive Stop function,Parity & Checksum
Response time:less than 100ms
Adaptable transmitter: all series shoulder belt transmitters
Power supply options: 9-36vdc or 30-420vac;
Support:
CANopen CiA DS301 V4.02
CANopen CiA DS303 V1.0
4*TxPDO and 4*RxPDO
Baud rate:10kbps, 20kbps,50kbps,125kbps,250kbps,500kbps,800kbps
