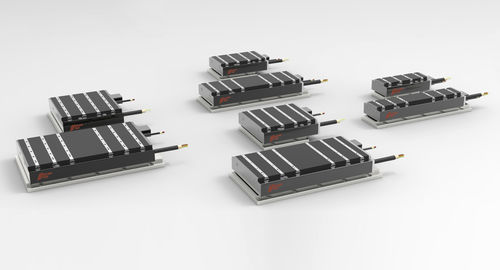

Iron-core linear motor KXAD series24 V220 V48 V
Add to favorites
Compare this product
Characteristics
- Type
- iron-core
- Voltage
- 24 V, 220 V, 48 V
- Configuration
- flat
- Force
Min.: 0.1 kN
Max.: 10 kN
- Power
Min.: 10 W
(0.014 hp)Max.: 10,000 W
(13.596 hp)200 W
(0.272 hp)- Stroke
Min.: 5 mm
(0.197 in)Max.: 10,000 mm
(393.701 in)500 mm
(19.685 in)
Description
Advantages of KXAD Flat Motor
HIGH THRUST DENSITY
The designed magnetic circuit optimization and heat dissipation improve thrust generated from unit volume.
100% METAL ENCLOSURE
The enclosure is capable of electromagnetic shielding, which protects the ambient environment from coil interference.
ULTRALOW THRUST RIPPLE
Stable operation thrust can be gained by weakening the end force and cogging force of the linear motor, which makes it a substitute for coreless motors.
