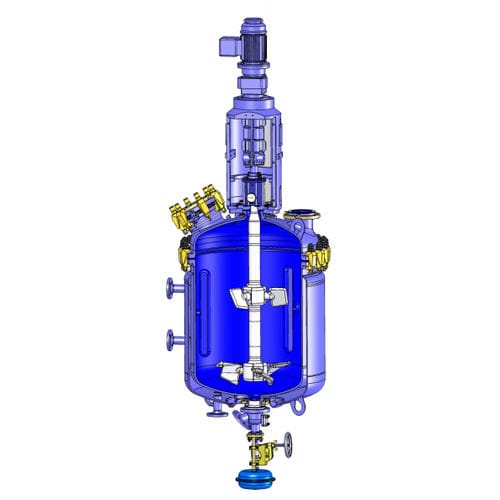

Process reactor

high-pressuresingle-reaction

This range of reactors meets every standards and is able to cover all your needs whatever your process. The perfect control of our manufacture and quality procedures leads to provide high quality products every time. BE closed-welded reactors without a large main opening for higher pressure ratings. Advantages Top head strength enables higher internal pressure rating, Opening for agitation limited, therefore more security by reducing gaskets and cramps. Simpler geometry facilitating the access to openings reserved for the processes and, for the same useful volume, decreasing the height of the vessel compared to the CE reactor. AE clamped or flanged-top reactors designed with a removable top head for today’s cleanability demands. Our standard AE glass-lined reactors are designed for a working pressure of -1/6 bar/vacuum in inner vessel and in the jacket and especially adapted for small capacity (<1000L) For a complete vessel, our standard scope of supply is as follows : Inner vessel with bottom outlet nozzles Main cover with nozzles, Support system. Half coil or Steel jacket welded onto inner vessel (including the nozzles necessary for heating and cooling). The cooling and heating media inlets are provided with agitating nozzles, Advantages Easy entry facilitates cleanability Opening enables use of one-piece agitators,
