Shell and tube heat exchanger QVF®

liquid/liquidsteelcorrosion-resistant

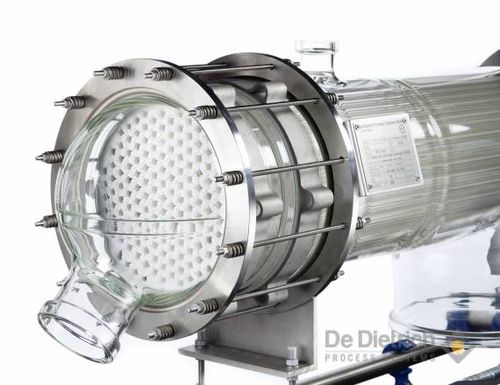

QVF® SUPRA SHELL AND TUBE HEAT EXCHANGERS - Medium side corrosion resistant - service side up to 6barg - - Both sides corrosion resistant up to 3barg - - Suitable for pharmaceutical production - HIGHLIGHTS Both sides resp. tubes and shell resistant to corrosion Pressure-proof (medium or service side) up to +6 barg Suitable for pharmaceutical products The QVF SUPRA shell and tube heat exchangers are available with nominal diameters of DN80 to DN300 heat exchange surfaces of 0.3m² to 27m² tubes made of borosilicate glass 3.3 or SiC shells made of borosilicate glass 3.3, glass-lined steel or stainless steel headers made of borosilicate glass 3.3, glass-lined steel or stainless steel The standard models of the QVF SUPRA shell and tube heat exchanger are designed for the condensation and tempering of highly corrosive substances between -20 and 150°C -1 bis +6 barg
