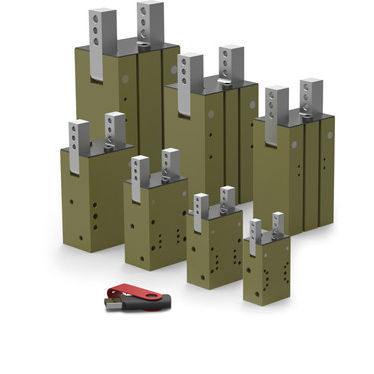

Pneumatic gripper CT-50M

spring180° angular2-jaw

Grip Force (lbf) 146.0 accuracy_in_english 0.0036 Weight (lb) 4.01 Displacement (in³) 5.614 Cylinder Bore (in) 1.97 Repeatability (±in) 0.002 Maximum Finger Length (in) 8.5 Pressure Range (psi) 40-100 Spring Assist No DistributorGroup Robohand Gripping Solutions Download the Service Manual https://www.destaco.com/assets/pdfs/maintenance/CT_Maintenance.pdf PRODUCT_WEIGHT_LBS 4.01 Temp Range Standard -35° to 80°C (-30° to 180°F) Actuation Time (Open) (Sec) 0.46 Temp Range Viton -30° to 150°C (-20° to 300°F) Number of Jaws 2.0 Protection Class IP43 Product Type 2 Jaw Angular Opening Per Jaw (degrees) 90.0 PRODUCT_WEIGHT_KG 1.8200 283-HTS_TARIFF_CODE 84798997 Opening Angle (deg) 180.0 PublishedDate 1673977361000 Product Series DCT / CT Actuation Time (close) (Sec) 0.46 Product Function Gripping Special Feature 180° Opening Angle
