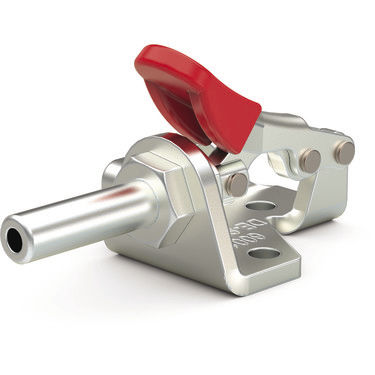

Straight-line toggle clamp 6001-Msteel
Add to favorites
Compare this product
Characteristics
- Configuration
- straight-line
- Other characteristics
- steel
- Clamping force
670 N
Description
Plunger Height (in)
0.5
Plunger Travel (in)
0.63
Weight (lb)
0.11
Maximum Holding Capacity (lbf)
150
Product Function
Clamping
Spindle (Recommended)
205208-M
Plunger
Round
Ef:Af Exerting Force: Applied Force ((pushing/pulling))
14:1/25:1
Product Series
6001
Standard Material
Steel
Product Type
Standard
Plunger Thread
M4
Base Mounting Style
Flange
Spindle Included?
No
Toggle Lock Plus
No
DistributorGroup
Workholding (Manual, Power and Hydraulic Clamps)
Catalogs
Workholding Catalog
343 Pages
