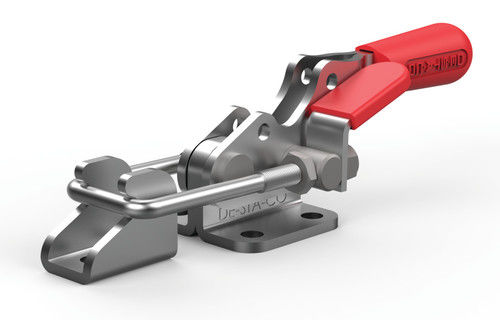

Horizontal toggle clamp 323latch typehookadjustable
Add to favorites
Compare this product
Characteristics
- Configuration
- horizontal, latch type, hook
- Other characteristics
- steel, adjustable, flange
- Clamping force
1,600 N
Description
Max Hook Adjustment (in)
0.49
Weight (lb)
0.15
Maximum Holding Capacity (lbf)
360.0
Drawing Movement without Thumb Control (in)
1.18
Standard Material
Steel
Hook Type
U-Hook (Horizontal)
Product Type
Standard
Hook Adjustable Range
10.7
Product Function
Clamping
Product Series
323/331/341
Toggle Lock Plus
No
Ef:Af Exerting Force: Applied Force ((pushing/pulling))
27:1
Replacement Hook Assembly
323215
PublishedDate
1673986255000
Latch Plate Supplied?
Yes
DistributorGroup
Workholding (Manual, Power and Hydraulic Clamps)
Latch Plate
323104-M
Base Mounting Style
Flange
