Double-diaphragm pump CUBIC 15
for chemicalsair-drivenself-priming

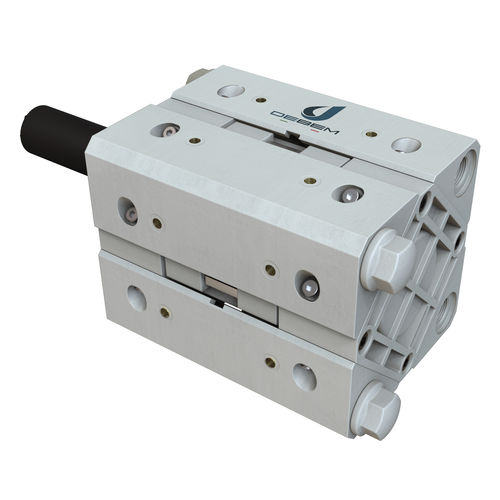

Double-diaphragm pump - CUBIC 15 - DEBEM SRL - for chemicals / air-driven / self-priming
Double-diaphragm pump - CUBIC 15 - DEBEM SRL - for chemicals / air-driven / self-priming
Double-diaphragm pump - CUBIC 15 - DEBEM SRL - for chemicals / air-driven / self-priming - image - 2
Add to favorites
Compare this product


Characteristics

Technology
double-diaphragm
Fluid
for chemicals
Operation
air-driven
Priming
self-priming
Mobility
stationary
Domain
industrial, for the chemical industry, for water treatment, for the mining industry, for the printing industry, for the glass industry
Applications
transfer
Material
PP
Protection level
ATEX
Other characteristics
dry, variable-speed
Flow

Max.: 17 l/min
(4.49092 us gal/min)

Min.: 11 l/min
(2.90589 us gal/min)

Pressure

Max.: 8 bar
(116.03 psi)

Min.: 2 bar
(29.008 psi)

Head

Max.: 80 m
(262'05" )

Min.: 0 m
(0'00" )

Fluid temperature

Max.: 95 °C
(203 °F)

Min.: 3 °C
(37.4 °F)

Width

201 mm
(7.91 in)

Height

105 mm
(4.13 in)

Weight

1.35 kg, 1.6 kg
(2.98 lb, 3.53 lb)

Description

CUBIC 15 diaphragm pumps are characterized by exceptional performance, power and strength, making them ideal for pumping liquids with high apparent viscosity even if containing suspended solids. Especially suitable in reduced spaces. ■ Product designed and constructed in Italy ■ PATENTED stall-prevention pneumatic circuit ■ Operates with non-lubricated air ■ SELF-PRIMING ■ Dry operation ■ ATEX certification for ZONE 1 - ZONE 2 ■ Adjustable operating speed ■ Extremely versatile ■ Suitable for pumping fluids in demanding applications ■ Suitable for continuous use
