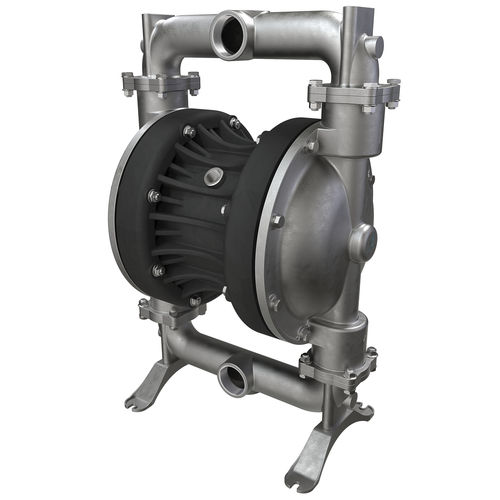

Double-diaphragm pump Boxer 502
for chemicalsair-drivenself-priming

Double-diaphragm pump - Boxer 502 - DEBEM SRL - for chemicals / air-driven / self-priming
Double-diaphragm pump - Boxer 502 - DEBEM SRL - for chemicals / air-driven / self-priming
Double-diaphragm pump - Boxer 502 - DEBEM SRL - for chemicals / air-driven / self-priming - image - 2
Add to favorites
Compare this product


Characteristics

Technology
double-diaphragm
Fluid
for chemicals
Operation
air-driven
Priming
self-priming
Mobility
stationary
Domain
industrial, for the chemical industry, for water treatment, for oil industry applications
Material
stainless steel, aluminum, PP, metal
Protection level
ATEX
Other characteristics
adjustable, lubricated, dry
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 600 l/min
(158.50323 us gal/min)

Pressure

Min.: 0 bar
(0 psi)

Max.: 8 bar
(116.03 psi)

Head

Min.: 0 m
(0'00" )

Max.: 80 m
(262'05" )

Fluid temperature

Min.: 3 °C
(37.4 °F)

Max.: 95 °C
(203 °F)

Width

470 mm, 566 mm
(18.5 in, 22.28 in)

Height

621 mm, 705 mm
(24.45 in, 27.76 in)

Weight

37 kg, 54 kg
(81.57 lb, 119.05 lb)

Description

BOXER 502 diaphragm pumps are characterized by exceptional performance, power and strength, making them ideal for pumping liquids with high apparent viscosity even if containing suspended solids. ■ Product designed and constructed in Italy ■ PATENTED stall-prevention pneumatic circuit ■ Operates with non-lubricated air ■ SELF-PRIMING ■ Dry operation ■ ATEX certification for ZONE 1 - ZONE 2 ■ IECEx certification ■ Adjustable operating speed ■ Extremely versatile ■ Suitable for pumping liquids with high viscosity and demanding applications ■ Possibility of pumping fluids containing suspended solids ■ Possibility of suspended installation ■ Manifolds can be supplied with stainless steel reinforcement rings for pumps in PP – PP+CF – PVDF ■ Suitable for continuous use
