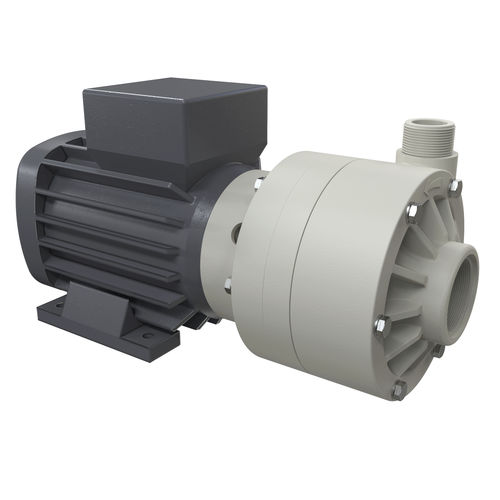

Horizontal mount pump MB 100 for chemicalswith electric motorbellows
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- with electric motor
- Technology
- bellows
- Mobility
- stationary
- Domain
- industrial, for water treatment, for petrochemical applications, for automotive applications
- Applications
- transfer, drainage
- Material
- PP, ceramic, EPDM, PVDF
- Other characteristics
- mechanical, spring, standard, horizontal mount, with mechanical seals, flange, filter, direct-drive, seal
- Flow
Max.: 9 m³/h
(317.832 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 10.5 mm
(0.41 in)Min.: 0 mm
(0 in)- Power
0.55 kW
(0.75 hp)- Fluid temperature
Max.: 95 °C
(203 °F)Min.: 3 °C
(37.4 °F)- Weight
1.7 kg, 2.2 kg
(3.75 lb, 4.85 lb)
Description
Electric motors available on request
– SINGLEPHASE
– ATEX
Seal o-ring materials
– EPDM
– VITON®
The weight refers only to the packaging without the pump inside
Accessories
FLANGE KIT (DIN standard – ANSI available on request):
– KITFLANGMB100P (PP pump)
– KITFLANGMB100F (PVDF pump)
PP basket filter o PVD
Aviable Seal
Bellows mechanical seal (new generation with “Self-locking” system)
Spring Aisi 304 – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE
Lip seal: VITON or EPDM
