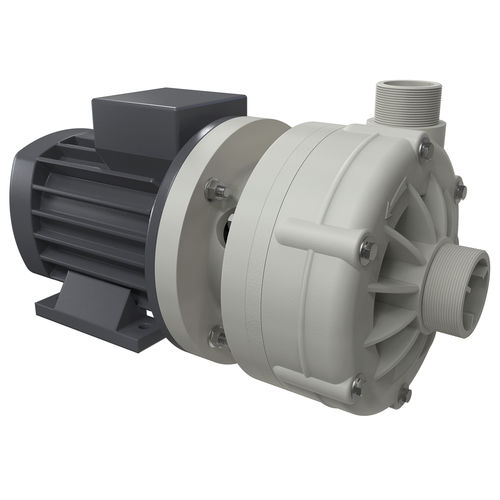

Horizontal mount pump MB 110
for chemicalswith electric motorbellows

horizontal mount pump
horizontal mount pump
horizontal mount pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals
Operation
with electric motor
Technology
bellows
Mobility
stationary
Domain
industrial
Applications
transfer, drainage, outlet
Material
PP, ceramic, EPDM, PVDF
Other characteristics
mechanical, spring, standard, horizontal mount, with mechanical seals, flange, filter, direct-drive, seal
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 20 m³/h
(706.29333 ft³/h)

Head

Min.: 0 m
(0'00" )

Max.: 15 m
(49'02" )

Power

1.1 kW
(1.5 hp)

Fluid temperature

Min.: -30 °C
(-22 °F)

Max.: 95 °C
(203 °F)

Weight

3.4 kg, 4.3 kg, 10 kg
(7.5 lb, 9.48 lb, 22.05 lb)

Description

* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials. ** Attention: average values of the different materials configurations for ball and ball seat. Accessories FLANGE KIT (DIN standard – ANSI on request): – KITFLANGMB110P (PP pump) – KITFLANGMB110F (PVDF pump) PP basket filter o PVDF Aviable Seal Bellows mechanical seal (new generation with “Self-locking” system) Spring Aisi 304 – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE Lip seal: VITON or EPDM
