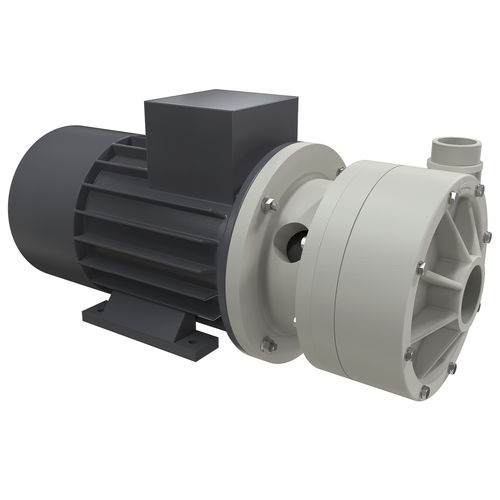

Horizontal mount pump MB 180 bellowsfor chemicalswith electric motor
Add to favorites
Compare this product
Characteristics
- Technology
- bellows
- Fluid
- for chemicals
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for water treatment
- Applications
- transfer, drainage
- Material
- PP, ceramic, EPDM
- Other characteristics
- mechanical, spring, horizontal mount, with mechanical seals, flow, direct-drive, seal
- Flow
Max.: 75 m³/h
(2,648.6 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 38 m
(124'08" )Min.: 0 m
(0'00" )- Power
11 kW
(14.96 hp)- Fluid temperature
Max.: 95 °C
(203 °F)Min.: -30 °C
(-22 °F)- Weight
9.9 kg, 12.2 kg, 17 kg
(21.83 lb, 26.9 lb, 37.48 lb)
Description
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials.
** Attention: average values of the different materials configurations for ball and ball seat.
Accessories
FLANGE KIT (DIN standard – ANSI on request):
– KITFLANGMB180P (PP)
– KITFLANGMB180F (PVDF)
PP or PVDF basket strainers
Aviable Seal
Bellows mechanical seal (new generation with “Self-locking” system)
Spring Aisi 304 – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE
Lip seal: VITON or EPDM
VIDEO
Catalogs
Other DEBEM SRL products
Horizontal centrifugal pumps with mechanical seals MB
