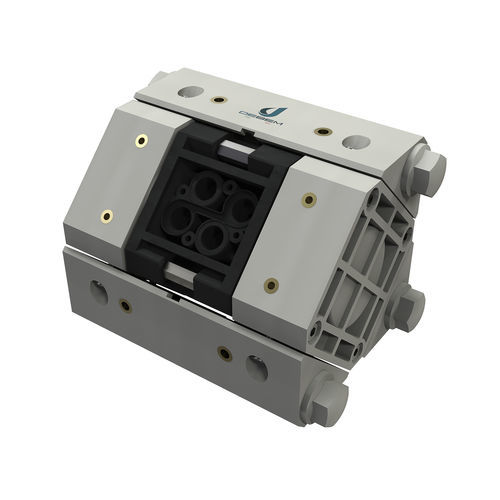

Double-diaphragm pump Scubic 15airair-drivenself-priming
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Operation
- air-driven
- Priming
- self-priming
- Technology
- double-diaphragm
- Mobility
- stationary
- Domain
- industrial, for the chemical industry
- Applications
- suction
- Material
- PP
- Protection level
- ATEX
- Other characteristics
- suction, standard, double
- Flow
17 l/min
(4.49092 us gal/min)- Pressure
8 bar
(116.03 psi)- Head
Max.: 80 m
(262'05" )Min.: 3 m
(9'10" )- Fluid temperature
Max.: 95 °C
(203 °F)Min.: 3 °C
(37.4 °F)- Input diameter
0.4 in
- Output diameter
0.4 in
- Width
201 mm
(7.91 in)- Height
105 mm
(4.13 in)- Weight
1.35 kg, 1.6 kg
(2.98 lb, 3.53 lb)
Description
Air-operated double diaphragm pumpsScubic
Suction / delivery connections: G 3/8″ f
ATEX ZONE 2 - STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 - AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db
