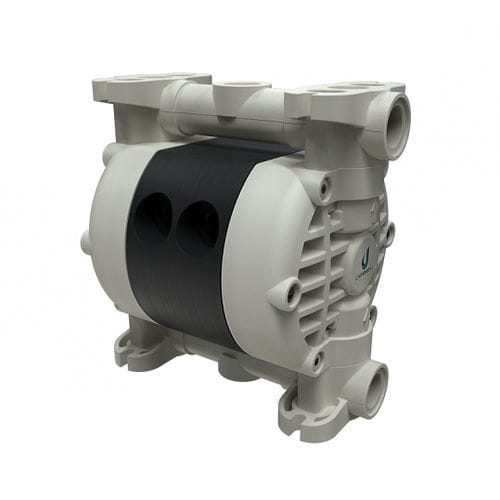

Double-diaphragm pump Smicroboxerairair-drivenself-priming
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Operation
- air-driven
- Priming
- self-priming
- Technology
- double-diaphragm
- Mobility
- stationary
- Domain
- industrial, for the chemical industry
- Applications
- suction
- Protection level
- ATEX
- Other characteristics
- suction, standard, double
- Flow
35 m³/h
(1,236.01334 ft³/h)- Pressure
8 bar
(116.03 psi)- Head
4 m
(13'01" )- Fluid temperature
Max.: 95 °C
(203 °F)Min.: 3 °C
(37.4 °F)- Width
164 mm, 165 mm, 177 mm
(6.46 in, 6.5 in, 6.97 in)- Height
168 mm, 171 mm, 172 mm
(6.61 in, 6.73 in, 6.77 in)- Weight
1.6 kg, 1.9 kg, 2 kg, 3.8 kg
(3.53 lb, 4.19 lb, 4.41 lb, 8.38 lb)
Description
Air-operated double diaphragm pumpsSmicro
Suction / delivery connections: G 1/2″ f
ATEX ZONE 2 - STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 - AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db
