Air pump Sboxer 50air-drivenself-primingdouble-diaphragm
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Operation
- air-driven
- Priming
- self-priming
- Technology
- double-diaphragm
- Mobility
- stationary
- Domain
- industrial, for the chemical industry
- Applications
- suction
- Protection level
- ATEX
- Other characteristics
- suction, standard, double
- Flow
60 m³/h
(2,118.88 ft³/h)- Pressure
8 bar
(116.03 psi)- Head
4 m
(13'01" )- Fluid temperature
Min.: 3 °C
(37.4 °F)Max.: 95 °C
(203 °F)- Width
241 mm, 247 mm
(9.49 in, 9.72 in)- Height
234 mm, 241 mm
(9.21 in, 9.49 in)- Weight
1.6 kg, 1.9 kg, 2 kg, 3.8 kg
(3.53 lb, 4.19 lb, 4.41 lb, 8.38 lb)
Description

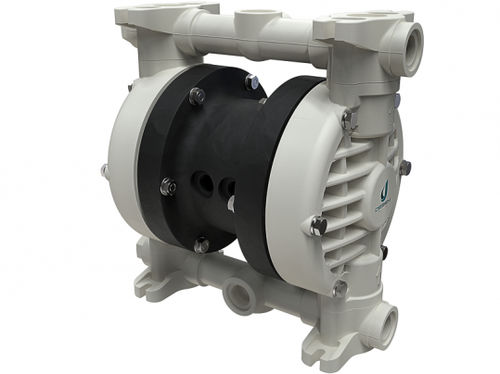

Air-operated double diaphragm pumpsSboxer 50
Suction / delivery connections: G 1/2″ f o DN 15
ATEX ZONE 2 - STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 - AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb II 2D Ex h IIIB T135°C Db
