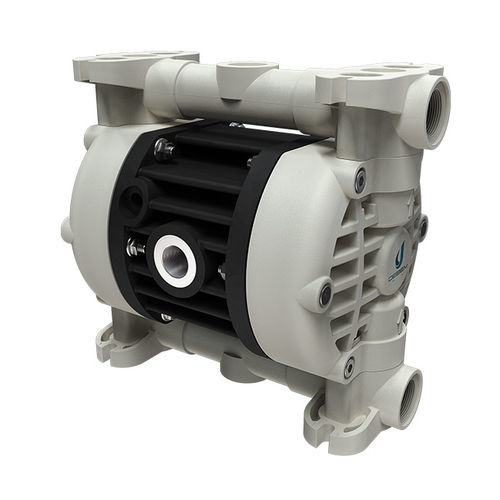

Double-diaphragm pump BOXER 35
for chemicalsair-drivenstationary

double-diaphragm pump
double-diaphragm pump
double-diaphragm pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals
Operation
air-driven
Technology
double-diaphragm
Mobility
stationary
Domain
industrial, for the chemical industry, for oil industry applications
Applications
process
Material
PP, PVDF
Protection level
ATEX, IECEx
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 35 l/min
(9.24602 us gal/min)

Pressure

Min.: 0 bar
(0 psi)

Max.: 8 bar
(116.03 psi)

Head

Min.: 3 m
(9'10" )

Max.: 80 m
(262'05" )

Fluid temperature

Min.: 3 °C
(37.4 °F)

Max.: 95 °C
(203 °F)

Input diameter

0.5 in

Output diameter

0.5 in

Width

188 mm
(7.4 in)

Height

168 mm
(6.61 in)

Weight

1.8 kg, 1.98 kg
(3.97 lb, 4.37 lb)

Description

Air-operated double diaphragm volumetric pumps, ATEX – IECEx certified, constructed in polypropylene or PVDF in the plastic version or in aluminium or AISI 316 L for the metal versions. BOXER pumps are ideal for pumping liquids with high apparent viscosity, even if containing suspended solids. The vast range of materials available for the parts in contact with the fluid, such as pump casings and manifolds, diaphragms, balls, ball seats and o-rings, makes them compatible with any type of fluid present on the market. They can be used in numerous applications such as the following industries: chemical, graphic, paint, galvanic, ceramic, naval, textile, leather, mechanical, oil and many more.

VIDEO
