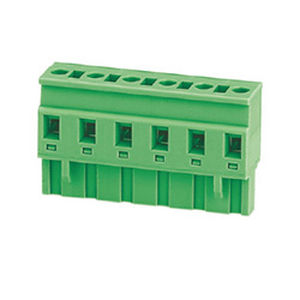

Plug-in terminal block 2EDGKA-7.5/7.62screw connectionbipolar
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- screw connection
- Other characteristics
- bipolar
- Cross-section
2.5 mm²
(0 in²)- Current
15 A, 18 A
- Nominal voltage
300 V, 400 V
Description
Electrical
Standard
UL IEC
Rated voltage
300V 400V
Rated current
15A 18A
Wire range
28-12AWG 2.5mm2
Withstanding voltage
4.0KV
Mechanical
Torque 0.4Nm(3.5Lb-In)
Ambient temperature -40°C~+105°C
Mechanical
Torque
0.4Nm(3.5Lb-In)
Ambient temperature
-40°C~+105°C
Strip length
7mm
Dimensions
Pitch
7.5mm(.295") 7.62mm(.300")
Poles
2P-12P
Material
Housing
PA66,UL94V-0
Screws
M2.5,Steel,Cr3+Zn-plated
Contact
Phosphor bronze
Cage
Brass,Ni-plated
Catalogs
No catalogs are available for this product.
