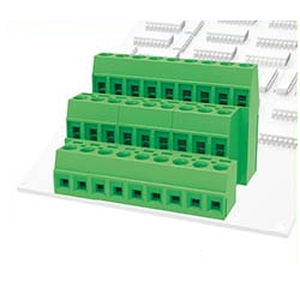

Printed circuit board terminal block DG381A3-3.5/3.81screw connectiontripolarbipolar
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Connection
- screw connection
- Other characteristics
- tripolar, bipolar
- Cross-section
1 mm²
(0 in²)- Current
10 A, 12 A
- Nominal voltage
130 V, 300 V
Description
Electrical
Standard
UL IEC
Wire range
26-16AWG 1.0mm2
Withstanding voltage
2.5KV
Mechanical
Torque
0.2Nm(1.7Lb-In.)
Ambient temperature
-40°C~+105°C
Strip length
5mm
Dimensions
Pitch
3.5mm(.138") 3.81mm(.150")
Poles
3*(2P,3P-24P)
Material
Housing
PA66,UL94V-0
Screws
M2,steel,Cr3+ Zn plated
Pin header
Phosphor bronze,Tin plated
Cage
Brass,Ni plated
