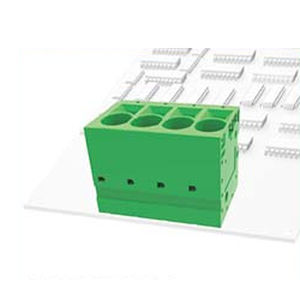

Printed circuit board terminal block DG271V-10.0springsingle-pole
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Connection
- spring
- Other characteristics
- single-pole
- Cross-section
Min.: 0.3 mm²
(0 in²)Max.: 16 mm²
(0.02 in²)- Current
70 A, 76 A
- Nominal voltage
600 V, 1,000 V
Description
Electrical
Standard
UL
IEC
Wire range
20-4AWG
0.2-16mm2
Rated suruge voltage
6KV
Mechanical
Ambient temperature
-40°C~+105°C
Strip length
10mm
Dimensions
Pitch
10.0mm(.394")
Poles
1P-XXP
Material
Housing
PA66,UL94V-0
Pin header
Copper,Tin plated
Wire guard
Stainless steel
Catalogs
No catalogs are available for this product.
See all of DEGSON Electronics CO.,LTD.‘s catalogsOther DEGSON Electronics CO.,LTD. products
