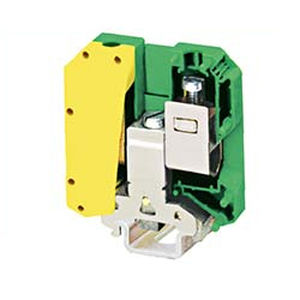

DIN rail-mounted terminal block PC 50-PEscrew connectiongrounding
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- screw connection
- Other characteristics
- grounding
- Cross-section
Max.: 50 mm²
(0.08 in²)Min.: 25 mm²
(0.04 in²)
Description
Approval
Standard
UL
IEC
Wire size
6-1/0AWG
25-50mm2
T/W/End plate
20/70.5/-mm
Height (NS35:7.5/NS35:15/NS32)
-/83.5/81.5mm
Rated Surge Voltage/Contamination Class
6kV/3
Stripping Length
24 mm
Clamping Screw:Screw Thread/Tightening Torque
M6/6-8Nm
Fixing Screw:Screw Thread/Tightening Torque
M6/6-8Nm
Internal Cylindrical Gage
B10
Insulating Material/Inflammability Class
PA/V-0
