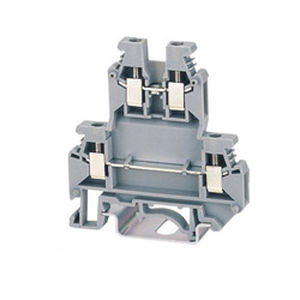

DIN rail-mounted terminal block PCKK 2.5screw connectionbipolar
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- screw connection
- Other characteristics
- bipolar
- Cross-section
Max.: 2.5 mm²
(0 in²)Min.: 0.2 mm²
(0 in²)- Current
20 A, 24 A
- Nominal voltage
300 V, 500 V
Description
Standard
UL
IEC
Wire size
24-12AWG
0.2-2.5mm2
T/W/End plate
5.2/56/2.6mm
Height (NS35:7.5/NS35:15/NS32)
62/69.5/67mm
Rated Surge Voltage/Contamination Class
6kV/3
Stripping Length
8 mm
Screw Thread/Tightening Torque
M3/0.5Nm
Internal Cylindrical Gage
A3
Insulating Material/Inflammability Class
PA/V-0
Catalogs
TERMINAL BLOCK general catalogue
64 Pages
