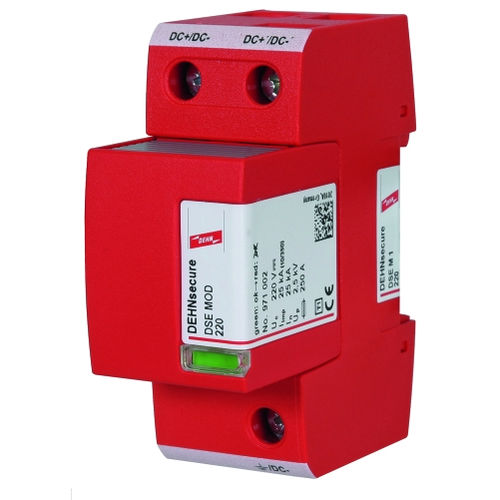

Type 1 surge arrester DSE M 1,DSE M 2P seriesfor power suppliesDC powerfor electrical installations
Add to favorites
Compare this product
Characteristics
- Type
- type 1
- Applications
- for power supplies, DC power, for electrical installations
- Other characteristics
- with fault indication, single-pole, coordinated, modular, DIN rail, plug-in, low-voltage, thermoplastic
- Voltage
60 V, 220 V, 242 V
- Primary current
25,000 A, 50,000 A
Description
Coordinated spark-gap-based lightning current arrester consisting of a base part and a plug-in protection module
Spark gap technology particularly suited for use in d.c. circuits
High lightning current discharge capacity of 25 kA (10/350 µs)
Directly coordinated with DEHNguard SE DC ... surge protective devices
Low voltage protection level
Operating state / fault indication by green / red indicator flag in the inspection window
Easy replacement of protection modules due to module locking system with module release button
