Protective shield for distribution switchgear insulation ISP 36 PVC A1

PVChigh-voltage

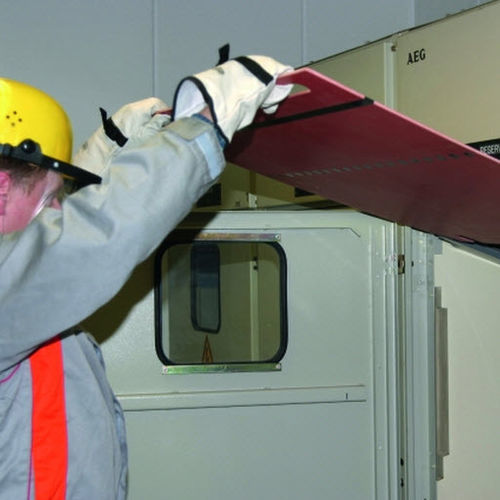

Protection against accidental contact with live parts of installations with rated voltages from 1 kV to 36 kV Four different designs for use in almost all types of switchgear installations With finger holes, guide and limit mark for inserting and removing insulating protective shutters into / from guide rails by hand. The guide mark is a dotted line with a minimum distance of 525 mm from the rear shutter edge. The section beyond this mark must not be contacted when inserting the insulating protective shutter. The limit mark is a continuous line and separates the handle from the protective section. The section beyond this mark must not be contacted when inserting the insulating protective shutter and must be at least 525 mm away from live parts when the shutter has been inserted.
