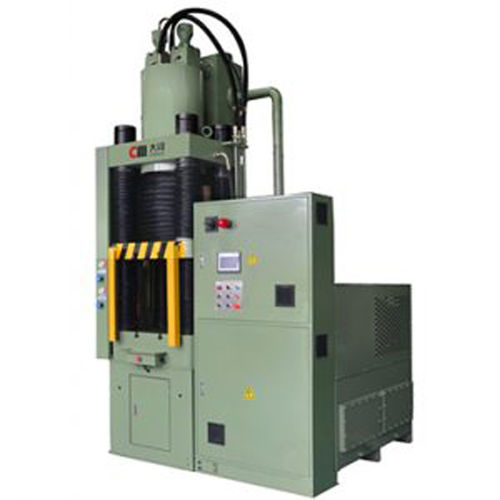

Four column press CMSe-S series

hydraulicformingPLC-controlled

Ease operation: user friendly HMI, ease for setting parameters and recipe storage; Control system: PLC + HMI (Siemens brand), refer to pressing technology requirement set the parameters on HMI such as pressure, position, hold pressure, multi-pressing, etc; Accuracy monitoring: used for linear scale and pressure sensor to monitor the position and pressure, enhance the pressing accuracy; Position accuracy: repeatability of ram position achieve to ±0.01mm, control the scrap rate of products caused by machine accuracy; Pressing accuracy: repeatability of ram pressure achieve to ±2%, control the scrap rate of products caused by machine accuracy; Machine structure: through finite element analysis, guarantee the strength and rigidity of hydraulic press; Energy saving: used of servo motor driving system, can achieve energy saving 30 – 50%; Low noise level: used of servo motor driving system, fulfils different speed and pressure of pressing requirement, enhances the stability of movement, lower noise level; Selectivity: different of ejection type can be selected such as lower ejector, upper ejector and lower & upper ejector, suitable for different type of pressing technology requirement; Automation: design of different automatic production equipment as customer requested; (Induction motor driving system as option)
