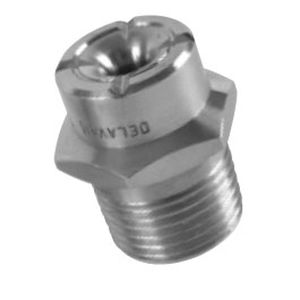

Spray nozzle BT series

full-conestainless steelbrass

SPRAY CHARACTERISTICS Uniform distribution of droplets in a wide angle solid cone square shaped pattern. Droplet size is larger than in hollow cone nozzles of equal capacity. Impact of spray is generally greater with narrower spray angles, assuming the same flow rate. Pressure increases affect spray angle. CONSTRUCTION AND MATERIALS One piece body with pressed-in, cross-milled core which is removable. Core imparts the necessary swirl to produce a solid cone spray pattern. Hexagon body for easy installation eliminates distortion of orifice during installation. Brass and Stainless Steel are standard. Other materials available to special order. ORDER EXAMPLE 1/2" BTF (Female) 59 Brass. 3/4" BTM (Male) 98 Stainless Steel. Maximum Recommended Pressure: 35 Bar.G.
