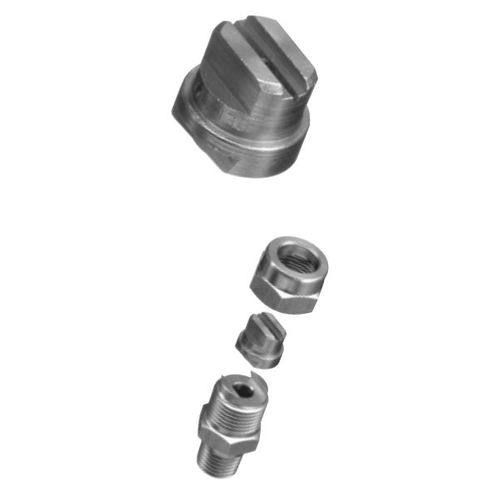

Spray nozzle LD series

flat spraystainless steelbrass

SPRAY CHARACTERISTICS Produces a uniform, flat spray without hard edges. Tapered edges of pattern allow overlapping for even distribution. Impact of spray is generally greater with narrower spray angles assuming equal flow rates. Orifice is offset 5° to axis of dovetail. CONSTRUCTION AND MATERIALS Dovetail connection nozzle/body for positive alignment. 3 piece design with male thread of Welding Nipple body, available in: Brass. Stainless Steel. Mild Steel (Welding Nipple Body only.) Longer Welding Nipple bodies available to special order. Thread sizes are Male BSPT and Female BSPP. Other materials available to special order. ORDER EXAMPLE LD 15-65° Stainless Steel = Tip Only. 1/4" LDM (Male) 6-65° Stainless Steel = Complete Assembly. LDW 6-65° Stainless Steel = Welding Assembly. Maximum Recommended Pressure: 100 Bar.G.
