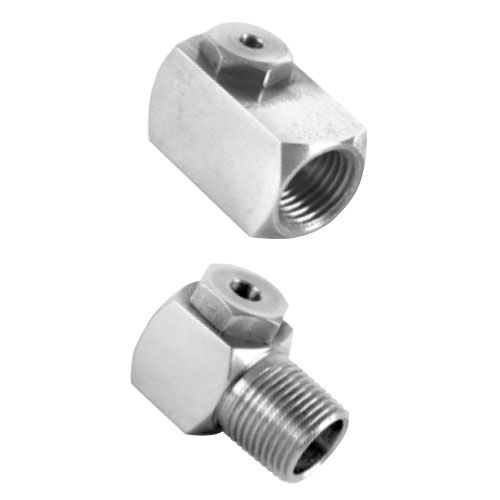

Spray nozzle AE serieshollow-conestainless steelbrass
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Stream
- hollow-cone
- Material
- stainless steel, brass
- Other characteristics
- male, female
- Orifice diameter
Min.: 1.6 mm
(0.063 in)Max.: 20 mm
(0.787 in)
Description
SPRAY CHARACTERISTICS
Uniform hollow cone spray pattern.
Atomization becomes finer at higher pressure and wider spray angles.
CONSTRUCTION AND MATERIALS
Right angle configuration.
Two piece design (body and cap) with no internal vanes.
Swirl chamber designed with counterbore for improved spray quality.
Thread sizes are Male BSPT and Female BSPP.
Brass and 316 Stainless Steel are standard.
Other materials available to special order.
ORDER EXAMPLE
1/2" AEM (Male) 80 Stainless Steel.
3/4 AEF (Female) 150 Brass.
Maximum Recommended Pressure: 14 Bar.G. (Metal), 7 Bar.G. (Plastic)
