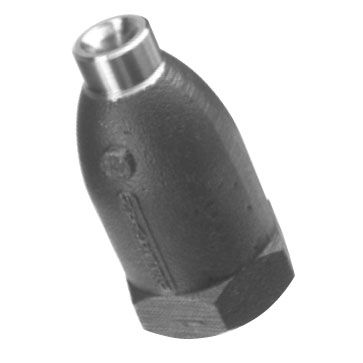

Spray nozzle BY series

full-conecast ironstainless steel

SPRAY CHARACTERISTICS Uniform distribution of droplets in a wide angle solid cone spray pattern. Droplet size is larger than in hollow cone nozzles of equal capacity. Spray droplet size increases as flow increases at the same pressure. CONSTRUCTION AND MATERIALS One piece, cast body with removable vane type core. Core imparts the necessary swirl to produce a solid spray pattern. Hexagon body for easy installation eliminates distortion of orifice during installation. Available in Cast Iron, Stainless Steel and Gunmetal as standard. Threads are Female BSPT. Other materials to special order. ORDER EXAMPLE 1 1/2" BY 52 Cast Iron. Maximum Recommended Pressure: 14 Bar.G. (Metal) 7 Bar.G. (Plastic)
