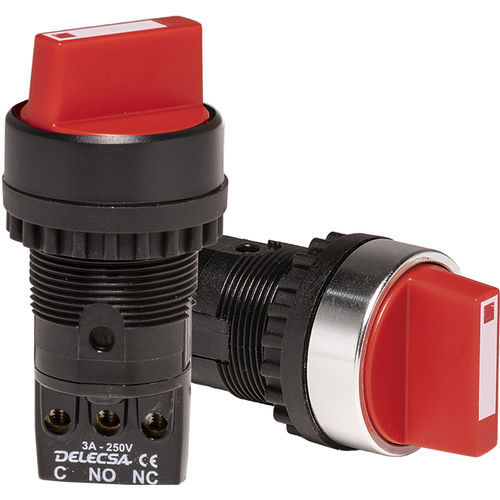

Selector knob push-button switch D-4055

selectormoisture-resistantIP55

Manufactured with the most modern microswitches and materials innovative, are at the forefront to be able to carry out miles of maneuvers on any machine tool or control panel. They are specially designed for use in places of high Industrial performance and maneuver, with performance and reliability. exceptional. ¬ Monocolor: ¬ Front color: chrome or black (depending on model) Characteristics ¬ Mounting type: Panel ¬ Mounting hole: 18 mm, 22 mm and 29 mm. ¬ Connection: Terminals, Faston 2.8 mm. ¬ Contacts: 1NO + 1NC switched ¬ Nominal voltage: 125 / 250 VAC - Nominal current: 3A (5A optional) ¬ Frequency: 50/60 Hz ¬ Contact resistance 25 mOhm Max. ¬ Insulation resistance: 100 mOhm Min. 500 VDC ¬ Ambient temperature: -25°C to 85°C ¬ Ambient humidity: 85% (from 5°C to 35°C) ¬ Drive force: 300 gr ¬ Illuminated pushbutton voltages: 12V,24V,48V ACDC. / 110V, 220V AC. Dimensions expressed in millimeters. ¬ Material: PC/PA6-30GF ¬ Electrical life: 10,000 cycles/min - Mechanical life: 1,000,000 cycles/min ¬ Packaging: 10 Units. ¬ Complies with IEC60947-5-1, EN/IEC 60947-1, Rohs standards
