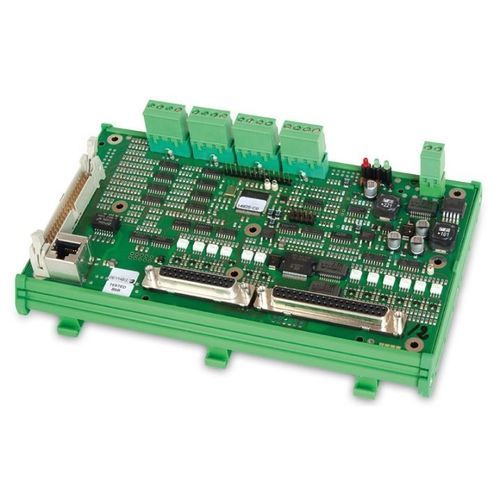

Analog I/O card RIK2 4 analog inputspanelcustom
Add to favorites
Compare this product
Characteristics
- Signal type
- analog
- Number of inputs/outputs
- 4 analog inputs
- Mounting
- panel
- Other characteristics
- custom
Description
Peripheral with the same characteristics as the RIK board, but without the fiber optic connection. It is connectable to the SOLO CNC or to the MLKSD Master Link board via network cable.
Connectable via cross network cable, snap-on housing on DIN EN 50 022 rail
Maximum distance from Master-Link: 30m
Mounting with snap-on housing on the DIN EN 50022 bar (Omega rails)
2 handwheel INPUT
4 analog INPUT (12 bit) for potentiometers
24 24V INPUT (pushbuttons)
8 24V 0,5A OUTPUT (lamps)
16+16 I/O 5V for custom membrane pushbutton panel (pushbuttons and Led)
