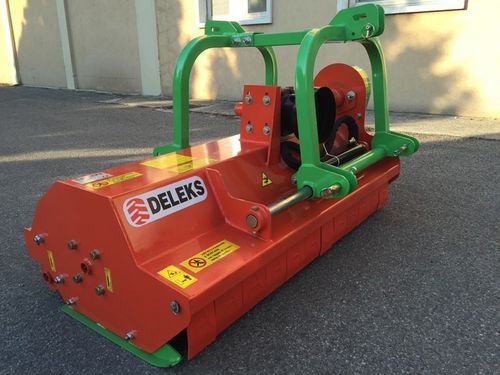

RINO-200 Adjustable sideshift Flail Mower For 60-90HP Tractors Shredder, Mulcher
OVERVIEW
The RINO 200 is an heavy and compact mulcher, designed for working on fields, gardens, meadows, paddocks, unkempt ground, light rushes ect. It can be offset hydraulically easily and thanks to its 4mm frame (5mm above the rotor) is durable and sturdy enough to handle vegetation up to 3-4cm in thickness. This mower is attached to the tractor using reinforced steel universal three point linkage and fits most 60-90hp tractors e.g Kubota, Ford, McCormick, Massey Ferguson, New Holland T3-T4, John Deere 4, Lamborghini Ego, etc. The Rino can be reversed to be used on the front of the tractor on request.
BENEFITS & FEATURES
GB Bologna Gearbox with free wheel (Made in Italy) with 3 year warranty.
SKF long life rotor bearings.
32cm hydraulic side shift.
820g heat forged hammers to shred vegetation up to 4-5cm thick.
152.0 mm rear roller.
4 high resistance toothed belts, and external belt tensioner.
Electronically balanced rotor.
Adjustable roller unit and side skids.
PTO Shaft with shear bolt included.
TECHNICAL DATAS:
Working width 1992.0 mm
Weight 478.0 kg
Tractor Power Range 70 - 100 Hp
Overall width 2130.0 mm
Overall height 950.0 mm
Overall length 970.0 mm
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Spacing between the 2 lower points 505.0 - 840.0 mm
