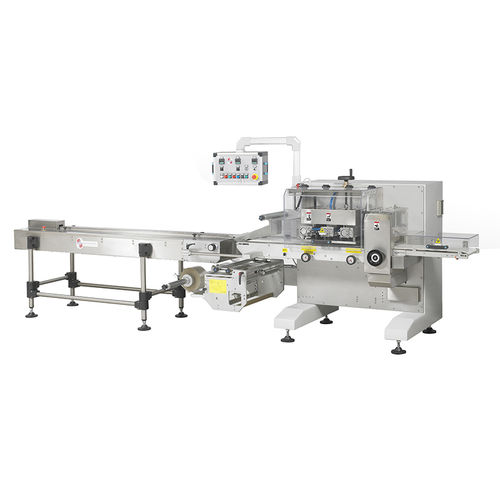

Automatic packaging machine SIRIO 600 E

horizontalwith sealingflow-pack

Electronic Horizontal Flow-Pack machine complete with rotary sealing jaws and Film Roll Holder from the bottom, composed of: • Main machine structure in painted steel RAL 9006 and stainless steel AISI 304 guards; • Cantee lever style construction with all the mechanical transmissions positioned behind the machine separated from the product flow area; • 2600mm long infeed conveyor (usable loading space 2200mm approx.) complete with stainless steel AISI 304 deck plates and side guards; • Food grade nylon pushers and pushers supports; • Longitudinal fin seal assembly carried out by 3 sets of independent fin wheels diameter 120mm. First set is for pulling , second one is for sealing and third one is for driving. Pneumatic opening of the fin wheels; • One up-rotary motion sealing assembly with 300mm wide jaws and transverse or longitudinal sealing pattern complete with inclined cutting knife assembly. Sealing surface width 12,5mm; • Electronic torque limiter on transverse sealing jaws; • Products carrying band under fin wheels assembly; • Motorization by means of 4 brushless motors, one for the infeed conveyor, one for fin wheels assembly and one for transverse jaws assembly and one for band under the wheels; • One self-centering cantilever film roll holder 600mm wide from the bottom; • One motorized film unwinding rubber roller; • Discharge conveyor belt one meter long complete of independent motor controlled by inverter; • Shock proof Plexiglas safety guards with safety micro switches; • Color touch screen with the possibility to store up to 99 working programs; • One adjustable width forming box • Machine direction from left to right as shown on general catalog;
