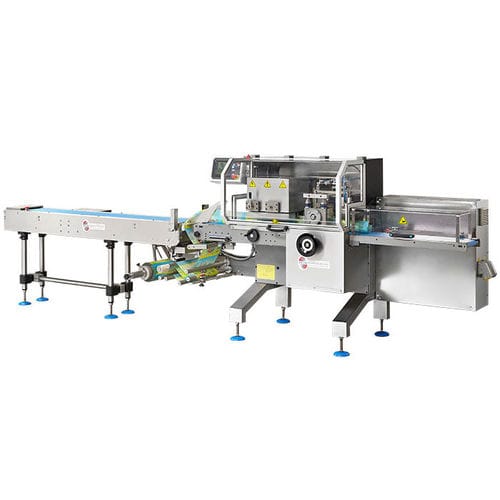

Automatic packaging machine GEMINI 500 E

horizontalwith sealingflow-pack

Electronic Horizontal Flow-Pack machine complete with rotary  sealing jaws and Film Roll Holder from the bottom, composed of: • Main machine structure in painted steel RAL 9006 and stainless steel AISI 304 guards; • Cantilever style construction with all the mechanical transmissions positioned behind the machine separated from the product flow area; • 2100mm long infeed conveyor (usable loading space 1700mm approx.) complete with stainless steel AISI 304 deck plates and side guards; • Food grade nylon pushers and pushers supports; • Longitudinal fin seal assembly carried out by 2 sets of independent fin wheels diameter 120mm. First set is for pulling, second one is for sealing; • One up-rotary sealing assembly with 240mm wide jaws and  inclined cutting knife assembly. Standard sealing width 12,5mm; • Electronic torque limiter on transverse sealing jaws; • Products conveying band under the fin wheels assembly; • Motorization by means of 4 brushless motors, one for the infeed conveyor, one for fin wheels assembly, one for transverse jaws assembly and one for belt under the fin wheels; • One self-centering cantilever film roll holder 500mm wide from the bottom; • One motorized film unwinding rubber roller; • Discharge conveyor belt one meter long with independent motor controlled by inverter; • Shock proof Plexiglas safety guards with safety micro switches; • Color touch screen with the possibility to store up to 99 working programs; • One adjustable width  forming box; • Machine direction from left to right as shown on general catalog; • Pneumatic components: FESTO; • Machine built in accordance with CE standards; • Voltage: 400V, 3PH, T+N
