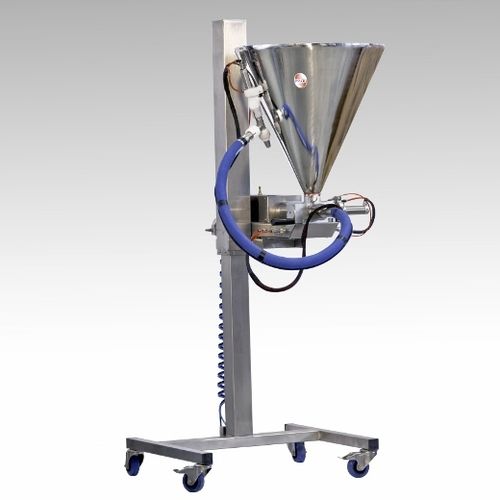

Muffins depositor GALILEO

for pastry shops

N° 01 PNEUMATIC DEPOSITOR MOD. GALILEO Functional and constructive characteristics  Main frame is constructed in stainless steel Aisi 304, assembled on 4 castors.  Hopper constructed in stainless steel Aisi 304, capacity 46 Lt. (Hopper can be dismantled without the use of spanners).  Automatic lifting/lowering of the depositor by means of a lever. (pneumatic lifting/lowering system)  One Dough cylinder is included in the machine price, sizes available : o 10-63 ml – suitable for the muffins, included in basic machine price. o 20-129 ml o 41-253 ml o 64-395 ml o 92-570 m.  Pneumatic cylinder for dough suction (Volume see above) and deposit.  Stainless steel Aisi 304 support plate for depositor.  Easy clamp system to dismantle dough discharge valve (no spanners required).  Deposit speed regulator.  Machine ON/OFF switch.  Dough volume adjustment knob with metric rule to memorize position.  Manometer for air pressure adjustment.  Easy clamp system to dismantle the nozzle gun pipe from the deposit valve.  Air pressure 5 Bar.  Instruction manual in English or Italian, manuals in any other language are to be first negotiated with Deflin. Machine dimensions : Length : 1000 mm. Width : 900 mm. Height : 850 mm. Weight : 150 Kg.
