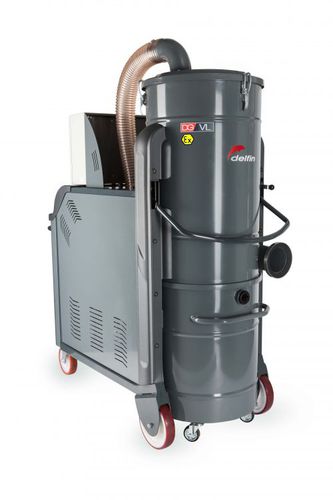

Industrial vacuum cleaner DG VL 150 SE
drythree-phase2-motor

Industrial vacuum cleaner - DG VL 150 SE - Delfin Vacuums - dry / three-phase / 2-motor
Industrial vacuum cleaner - DG VL 150 SE - Delfin Vacuums - dry / three-phase / 2-motor
Add to favorites
Compare this product


Characteristics

Domain
industrial
Type
dry
Power source
three-phase
Number of motors
2-motor
Configuration
mobile
Other characteristics
heavy-duty, with self-cleaning filter
Power

17,300 W
(59,030.02 BTU/h)

Capacity

160 l
(42.3 gal)

Air flow

720 m³/h
(25,426.6 ft³/h)

Vacuum

588 mbar
(9 psi)

Noise level

78 dB

Weight

440 kg
(970.03 lb)

Height

200 cm
(78.7 in)

Length

170 cm
(66.9 in)

Width

74 cm
(29.1 in)

Description

The DG VL 150 SE furtherly improve the performances of the model DG VL 110 SE in terms of waterlift. The SE option identifies the models available with a two or three stage blower motor, providing additional performances in water lift. Recommended for pneumatic transport and vacuuming heavy / dense materials, especially if placed below the vacuum unit. Very suitable for applications involving suction of heavy material, such as sand blasting, foundries, steel mills. ADVANTAGES - Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty - Largest surface filter in its category - Integrated filter cleaning system - Tangential suction inlet with integrated separation cyclone - Complete steel construction - Extractable collection container with optional use of disposable bags - Pressure relief valve for motor protection - Vacuum gauge to detect filter clogging - Low noise level - Star-triangle switchboard - Simultaneous suction of solid, dust and liquid material - Fork lift intakes included - Filter-shaking cleaning system with compressor for Self Clean
