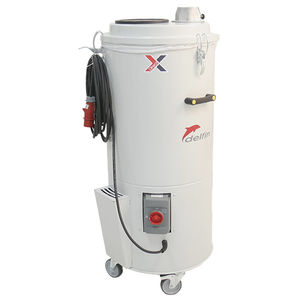

Industrial vacuum cleaner DBFV series
drythree-phasestationary

Industrial vacuum cleaner - DBFV series - Delfin Vacuums - dry / three-phase / stationary
Industrial vacuum cleaner - DBFV series - Delfin Vacuums - dry / three-phase / stationary
Add to favorites
Compare this product


Characteristics

Domain
industrial
Type
dry
Power source
three-phase
Configuration
stationary
Other characteristics
compact, heavy-duty, low-noise
Power

1,800 W, 2,200 W
(6,141.85 BTU/h, 7,506.71 BTU/h)

Capacity

25 l
(6.6 gal)

Air flow

270 m³/h, 318 m³/h
(9,535 ft³/h, 11,230.1 ft³/h)

Vacuum

Min.: 225 mbar
(3 psi)

Max.: 245 mbar
(4 psi)

Noise level

69 dB, 70 dB

Weight

45 kg, 60 kg
(99.21 lb, 132.28 lb)

Cable length

10 m
(32'09" )

Height

1,130 mm
(44.5 in)

Length

540 mm
(21.3 in)

Width

420 mm
(16.5 in)

Description

COMPACT INDUSTRIAL VACUUM CLEANER FOR INTEGRATION INTO AUTOMATIC PRODUCTION LINES AND MACHINERY The DBFV vacuum cleaner was designed to remove dust and processing waste on board industrial machinery from different types of industries: from the packaging industry, to the food industry and the paper processing industry. Due to its compact and modular design, the DBF vacuum cleaner can be easily integrated into production line machinery, without taking up space. Integrated filter and collection container. ADVANTAGES - Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty - Integrated filter cleaning system - Complete steel construction - Pressure relief valve for motor protection - Low noise level - Easy filter replacement - Reduced downtime of machine tools - Possibility of integration on other vacuum cleaners - Modularity is guaranteed to fulfil the client's needs - Full customization for specific needs
