Industrial vacuum cleaner DHV 22
drysafetyelectric

Industrial vacuum cleaner - DHV 22 - Delfin Vacuums - dry / safety / electric
Industrial vacuum cleaner - DHV 22 - Delfin Vacuums - dry / safety / electric
Industrial vacuum cleaner - DHV 22 - Delfin Vacuums - dry / safety / electric - image - 2
Add to favorites
Compare this product


Characteristics

Domain
industrial
Type
dry
Substance vacuumed
safety
Power source
electric
Container type
stainless steel
Configuration
mobile
Other characteristics
with self-cleaning filter, with HEPA/ULPA filtration
Applications
foundry
Power

22 kW

Capacity

Min.: 800 m³
(28,251.7 ft³)

Max.: 1,000 m³
(35,314.7 ft³)

Air flow

1,300 m³/h
(45,909.1 ft³/h)

Weight

1,260 kg
(2,777.82 lb)

Height

253 cm
(99.6 in)

Length

160 cm
(63 in)

Width

152 cm
(59.8 in)

Description

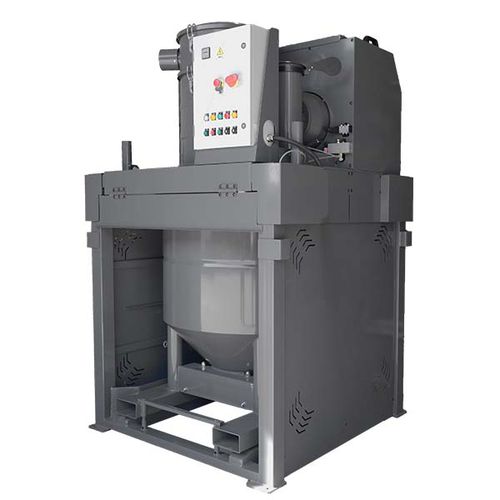

High performance mobile industrial vacuum cleaner with lobe pump mounted on a removable container. Its exceptional suction performance makes it ideal for continuous, heavy duty use in working conditions typical of heavy industry where there are large quantities of material to be vacuumed, The filtering system comprises a star filter and polyester safety cartridge to protect the pump. Automatic filter cleaning is carried out by a Self Clean shaker filter and actuated by the on board compressor. The collection container can be removed by pneumatically lifting the unit and emptied from the bottom via a large tilting door with lever. It closes automatically when the container is lowered to the ground. Large inspection doors allow easy access to the engine compartment, while eyebolts make it easy to handle the unit by forklift. Available in Atex-certified version. ADVANTAGES Sturdy vacuum cleaner for intensive usePowerful lobe pump with electric motorHigh performances and long-lasting equipmentHigh efficiency filtrationSemi-automatic filter cleaning systemEasy to handleDetachable container with fork lift intakes which make it is easy to handleDischarge system by means of a valveLow noise levelGreat autonomy of the system
