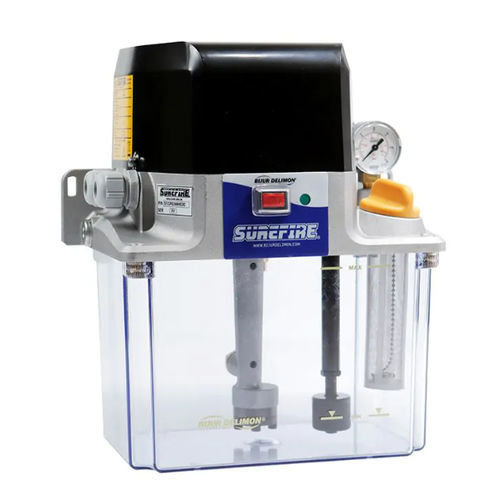

Gear pump SUREFIRE II SLRoilelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Fluid
- oil
- Operation
- electric
- Mobility
- stationary
- Applications
- lubrication
- Voltage
- 24 V
- Protection level
- robust, IP54
- Other characteristics
- compact, automatic
- Pressure
9 bar
(130.534 psi)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)
Description
VISCOSITY RANGE - 20-1500 CST
MOTOR ELECTRICAL CONNECTOR - CABLE GLAND
INTEGRATED CONTROLS - TERM STRIP
PRESSURE GAUGE - INCLUDED
OUTLET THREAD - 1/4BSPP
RETURN LINE THREAD - 1/4BSPP
IP RATING - IP54
OPERATING TEMPERATURE RANGE F - 40°F-105°F
OUTPUT VOLUME - 250 CC/MIN
DUTY CYCLE - S1 CONTINUOUS
MAX PRESSURE PSI - 130
FILL - FILL CAP
APPROVALS - CE
UM - EA
