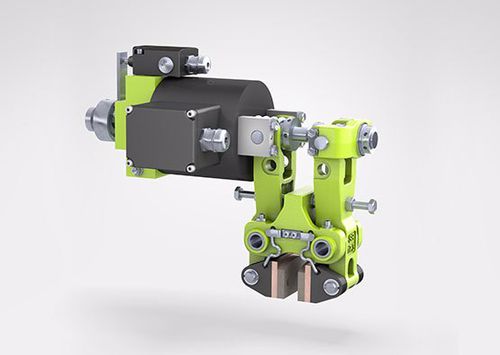

Disc brake SB 17.3 MXS

electromagnetichydraulicmanual

The SB series stands out due to its extremely fast closing times and its variability. It is used in a wide range of industries around the world due to its versatility, ease of application and user-friendly handling. MAIN FEATURES Electromagnetic release High performance by overforcing of electromagnet (magnet IP54) Internal rectifier / economizer unit, direct connection to 380-480 V AC, 3 Ph., 50-60 Hz Adjustable brake torque Simple, manual wear compensation Organic, non-asbestos linings Manual release and limit switch release control as a standard Stainless steel brake body OPTIONS Proximity switch pad wear Sintered linings Hydraulic damping unit for continuously adjustable apply time of 1-8 seconds Motor connection flange incl. protective cover Brake discs with hubs or couplings
