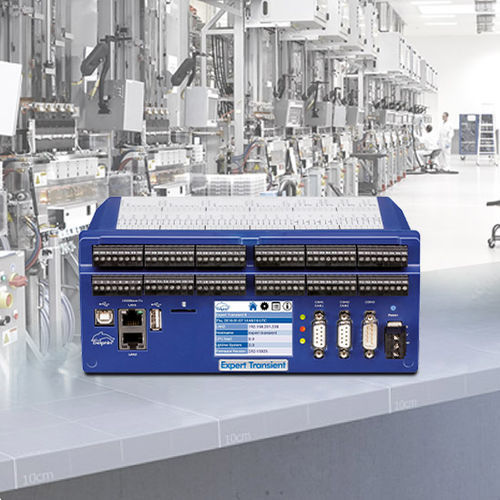

Paperless recorder Expert Transient

eventdigitalanalog

The intelligent transient recorder for synchronous recording of transient and periodic processes. Measurement data can be triggered or continuously recorded over long time periods. Expert Transient is equipped with the powerful FPGA technology. Synchronous detection and high accuracy with the transient recorder The Expert Transient device is capable of synchronously acquiring and independently saving analog measurement data up to a sampling rate of 50 kHz per channel in combination with digital signals. Data storage is highly secure due to an option for parallel recording to internal and external storage media. Expert Transient is equipped with 4, 8, 12 or 16 synchronous analog inputs and 4 digital inputs. The system can be extended to over 100 analog signals via a LAN interface with high-speed synchronization protocols. An extension for additional synchronous digital inputs is also possible. ProfiSignal 20 Go software enables recorded signals to be portrayed live in y(t) diagrams. Even large volumes of historical data are easy to analyse using the ProfiSignal software. The device's internal storage can be accessed using ProfiSignal 20 Go and the data analysed offline. A signal sequence diagram is especially useful in providing an overview of the chronology of a malfunction event. Product highlights Acquisition of transient and periodic signals Triggered and continuous acquisition modes Diverse range of analysis functions Optional with the ProfiSignal 20 Go analysis software Synchronously extendible with analog and digital inputs Independent, stand alone operation with long-term data storage capability Connectivity via WiFi network
