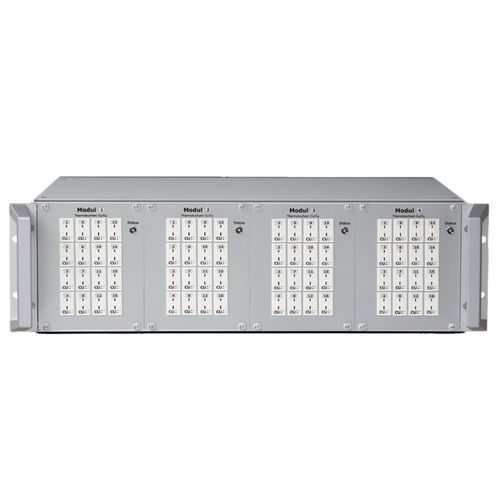

Temperature measuring device

levelgasthermocouple

The Delphin channel temperature measuring device is a high-precision multi-channel temperature measuring device and temperature data logger for temperature measurement with thermocouples. Multi-channel temperature measuring devices The temperature measuring device is specially designed to cover multi-channel temperature measurement (16-, 32-, 48- or 64-channel temperature measurement) for industrial, research and development, laboratory and test stand applications. Solutions Users use the system, among other things, for temperature measurement tasks in the development of: Gas turbines Boilers Furnaces and firing systems Product features and characteristics of the temperature measurement device The multi-channel temperature measuring device achieves a typical measuring accuracy of up to 0.2 K absolute. This high measuring accuracy in the temperature range distinguishes the multi-channel temperature measuring device from many competitive products. Universal thermocouple connectors in a (Cu/Cu) material combination enable users to connect any type of thermocouple via miniature thermocouple connectors with flat pins. This system benefits from the thermocouples being quick and easy to reconnect following each experiment run. If the measurement task requires more than 64 channels, the system can be extended via a CAN bus. The 64 multi-channel temperature measuring device is designed as a 19-inch unit.
