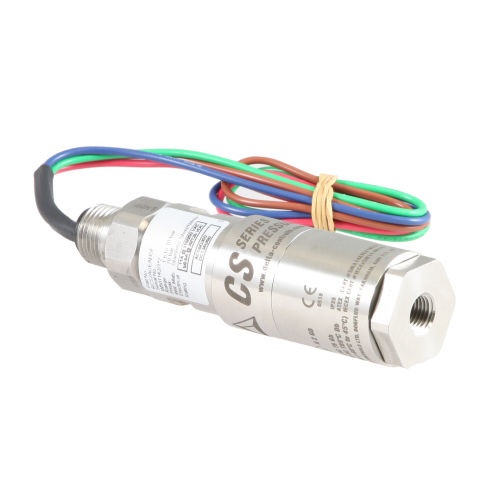

Diaphragm pressure switch CS2

differentialSPDTNPT 1/4

Confined space and harsh environments The Compact Series, (C S), switch has been designed to meet the specific requirements of panel applications, whether they be of the Wellhead Control, Hydraulic Power Unit or Chemical Injection Skid type. Their compact, rugged, all stainless steel construction makes them especially useful in the cramped and harsh environmental conditions that these applications demand. Supplied as standard with hermetically sealed switch contacts and with field adjustable set-points up to 700 bar, the Compact Series of Switches also come with either Intrinsically Safe or Flameproof approvals for use in Zone 0 or Zone 1 hazardous areas respectively. The model CS2 and CS4 Presure Switches are suitable for setpoints between 0.25bar and 700bar with maximum working pressures up to 1000bar. (EAC certification is available on request). FEATURES & BENEFITS Compact design The CS Series switches are all housed in a stainless steel compact and rugged enclosure making them particularly suitable for panel mounting in harsh environments Hermetically sealed switches All models in the Compact Series come with hermetically sealed switch contacts and flying leads as standard. Better than 1% set-point repeatability Users can expect a set-point repeatability performance better than 1% on all configurations with some configurations being significantly better Safety All Compact Series models come with a safety vent to prevent the enclosure becoming pressurized in the event that the sensor is inadvertently damaged by excessive pressure
