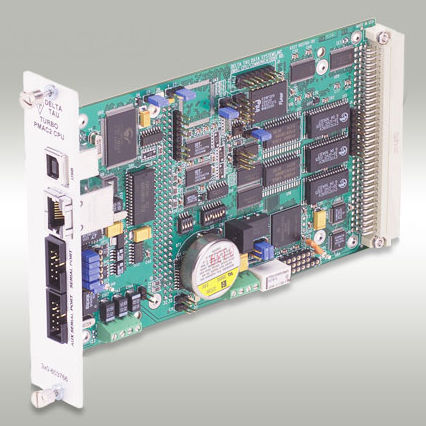

Multi-axis motion control card TURBO UMAC CPU

stepperlinearmodular

The Turbo PMAC2 UMAC CPU is intended to be used in a 3U UMAC Rack, which is a modular rack format permitting the user to configure his or her rack with whatever I/O, servo control cards, MACRO cards, communication cards or any other accessory card Delta Tau offers for the UMAC Rack format, to build a totally user-customized system. The Turbo PMAC2 UMAC CPU can control up to 32 axes, whether through direct local control, or distributed control over a MACRO fiber optic ring. HARDWARE FEATURES 3U-format Eurocards Interface between the UMAC Turbo CPU/Communications Board and the machine to output amplifier command signals, to input feedback information, and to input flags information including end-of-travel limits and machine home sensors. Different kind of axes interface boards can be selected to control analog ±10V amplifiers, stepper drivers and direct digital PWM amplifiers SOFTWARE FEATURES Trajectory Generation Features Linear interpolation mode with S-curve accel/decel Circular interpolation mode with S-curve accel/decel Rapid point-to-point move mode Cubic B-spline interpolation mode Cubic Hermite-spline (PVT) interpolation mode Automatic move-until-trigger functions with hardware capture Altered destination on the fly Interactive jog moves Multi-move lookahead for velocity and acceleration limiting
