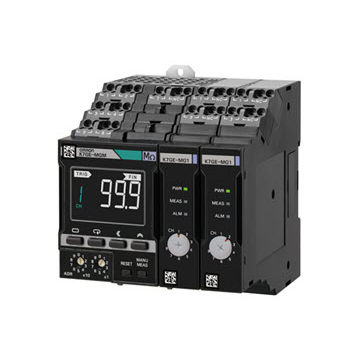

DIN rail insulation resistance meter K7GE-MG series

for electric motors

The K7GE is a remote insulation resistance monitor designed to detect insulation breakdown of single-phase motors, three-phase motors, and servo motors in harsh environments. Insulation breakdown is common in motors operating in harsh environments and if they are not monitored regularly by performing manual insulation resistance checks it can lead to unexpected downtime on the equipment. Overview • DIN-rail mounted controller with LCD display • RS-485 serial connection for remote monitoring • Transistor alarm outputs • Modular probe units for multiple motor insulation monitoring • Free PC monitoring software • 50 VDC measurement voltage • 0.1- 99 M Ω measurement range • Automatic insulation measurement Specifications Case material : PC Mounting : DIN rail Phase : 3-phase, 1-phase Output : 3 Transistor outputs (NC), 24VDC rated voltage, max current 50mA DC
