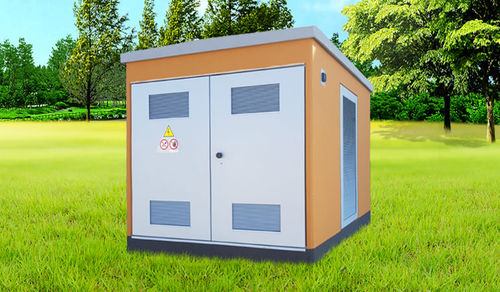

Medium-voltage transformer distribution substation DG 2081 Ed.05

E-Distribution approved electrical substation, used as a MV / LV transformer substation that can be operated from the outside, equipped with internal arc-proof fixtures and for these characteristics, suitable for being positioned in metropolitan areas or in areas with a high concentration of pollutants. It is built according to the requirements of the ENEL DG 2081 standardization technical specifications "Prefabricated for 24 kV SF6 insulated switchboards for altitudes up to 1,000 meters above sea level" and is built in vibrated reinforced concrete with a monobloc structure that incorporates the foundation base and the tank. It is supplied complete with all its parts except for the main equipment (MV switchboard, Transformer, LV switchboard and cables). The external walls, excluding the part of the bottom that will be buried in place, where a suitable waterproofing covering is provided, are treated with a water-repellent plastic wall covering consisting of high-quality synthetic resins, quartz powder, coloring oxides and additives that guarantee perfect anchoring on the product, resistance to atmospheric agents even in industrial and marine environments, color unalterability in sunlight and stability to temperature changes.
